Addressable fire alarm system

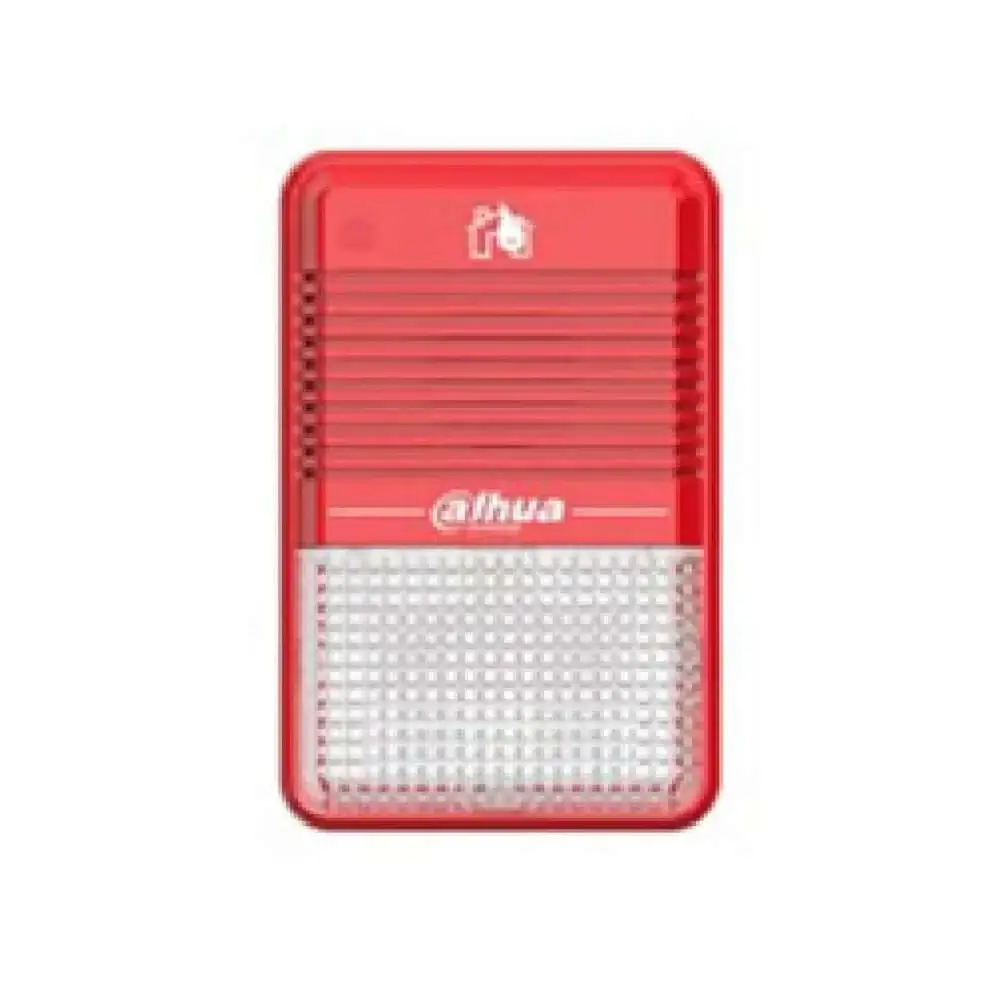

Model: DHI-HY-C151 Type: Conventional sounder strobe Power Supply: DC 16V–28V Rated Power: 132.6 mW Standby Current: ≤400 μA Alarm

Model: DHI-HY-122 Type: Conventional manual call point Power Supply: DC 16V–28V Standby Current: ≤200 μA Alarm Current: ≤260 μA Alarm

Model: DHI-HY-C136 Sensor Type: Thermal heat sensor Power Supply: DC 24V (2-wire, non-polarity) Monitoring Current: ≤500 μA Alarm Current:

Model: DHI-HY-C135 Sensor Type: Photoelectric smoke sensor Power Supply: DC 16V–28V Monitoring Current: ≤350 μA Alarm Current: ≤350 μA

Model: ИП 212-С131/4 Sensor Type: Optoelectronic smoke sensor Power Supply: 24V DC Monitoring Current: ≤180 μA Operating Current: ≤280 μA

Model: ИП 212-С131/2 Sensor Type: Optoelectronic smoke sensor Power Supply: 24V DC Monitoring Current: ≤180 μA Operating Current: ≤280 μA

Model: DHI-HY-1711 Function: Address encoder for fire alarm system devices Power Supply: 4×AA batteries or Micro USB Monitoring Current:

Gas Type: Propane (C₃H₈) Alarm Volume: 70 dB at 1 meter Power Supply: DC 12V Power Consumption: ≤0.8W Sensor Type: Catalytic sensor

Gas Type: Methane (CH₄) Alarm Volume: 70 dB at 1 meter Power Supply: DC 12V Power Consumption: ≤0.8W Sensor Type: Catalytic sensor

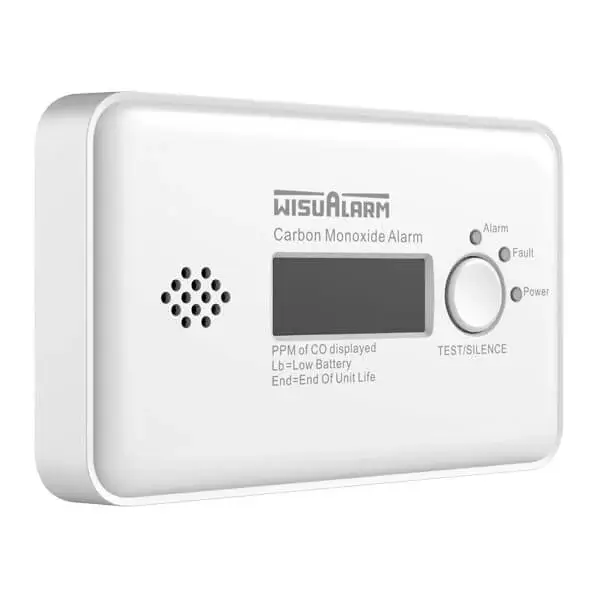

Sensor Type: Electrochemical carbon monoxide sensor Alarm Type: Visual and audible alarm Alarm Volume: 85 dB at 3 meters Power Source: 3V

Working voltage: 24V DC (18V–36V) Operating current: 30mA (25mA–45mA) Detection range: 5 m – 100 m Alarm sensitivity: 1.8 dB Dimensions:

Working voltage: 24V DC Monitoring current: ≤ 2mA Max operating current: ≤ 10mA Wiring: Two-wire, polarity-free Address range: 1–254

Working voltage: 24V DC Monitoring current: ≤ 150μA Max operating current: ≤ 8mA Short circuit current: 450mA Wiring: Two-wire,

Working voltage: 24V DC (16V–28V) Monitoring current: ≤ 150μA Max operating current: ≤ 190μA Wiring: Two-wire, polarity-free Address

Working voltage: 24V DC (16V–28V) Monitoring current: ≤ 150μA Operating current: ≤ 9mA Relay parameters: 30V DC / 2A / 25ms Wiring:

Рабочее напряжение: 24V DC Ток мониторинга: ≤ 150μA Максимальный рабочий ток: ≤ 250mA Мощность выходного контакта: 24V/2A/25ms

Working voltage: 24V DC Monitoring current: ≤ 120μA Max operating current: ≤ 7mA Wiring: Two-wire, polarity-free Address range: 1–254

Working voltage: 24V DC Monitoring current: ≤ 120μA Max operating current: ≤ 7mA Wiring: Two-wire, polarity-free Address range: 1–254

Working voltage: 24V DC Monitoring current: ≤ 120μA Max operating current: ≤ 170μA Wiring: Two-wire, polarity-free Address range: 1–254

Working voltage: 24V DC Monitoring current: ≤ 180μA Maximum operating current: ≤ 280μA Wiring: Two-wire, polarity-free Address range:

Model: DHI-HY-1022 Type: Addressable Fire Alarm Control Panel Working voltage: 16V–28V DC Main power: AC 90–240V / 50–60Hz Backup power: 2
