Analog fire alarm system

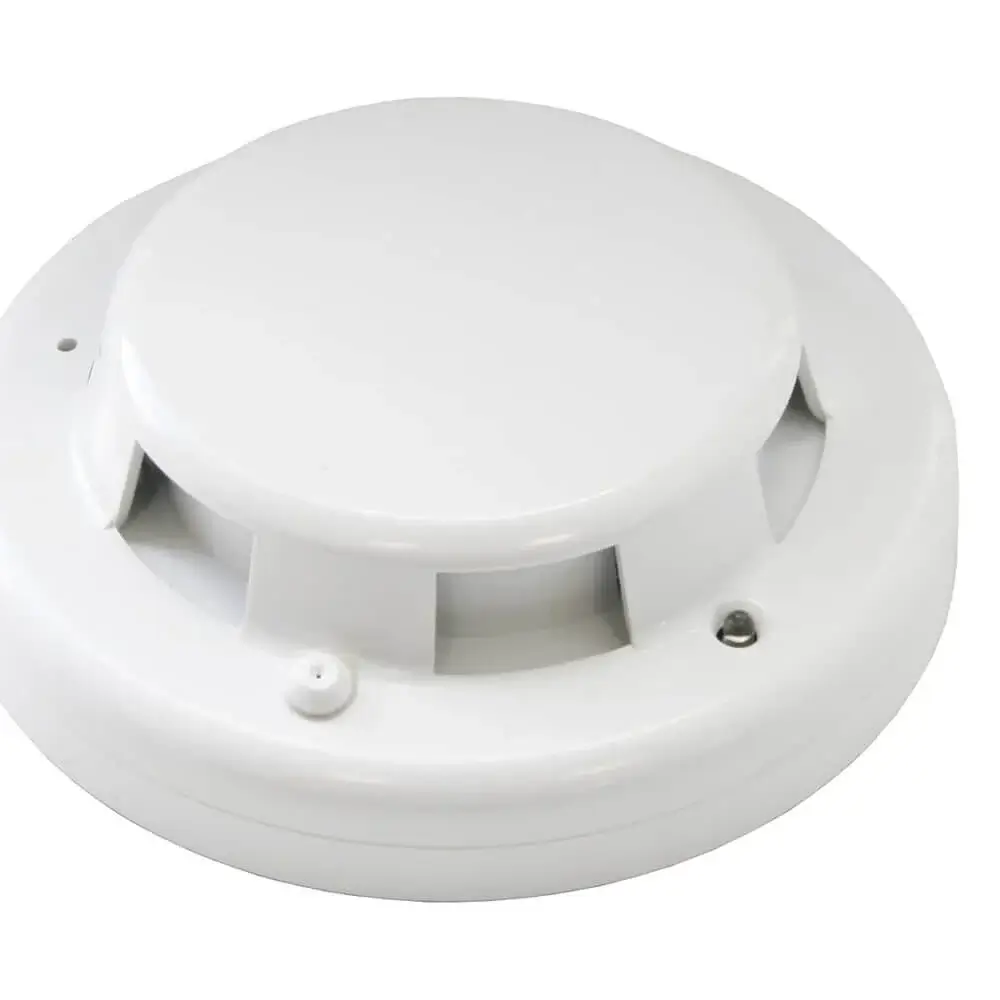

Model: SD-2011 Type: Optical-electronic smoke detector Detection principle: LED + photodiode (optical density) Power supply: 9–30 V DC

Device type: Smoke fire detector Operating principle: Optical density detection (LED + photodiode) Power supply: 9–30 V DC Standby

Model: EXIT-Glass Sign Type: LED evacuation light with glass diffuser Power supply: 230V AC Power: 1W Battery: Ni-Cd, up to 1.5 hours in

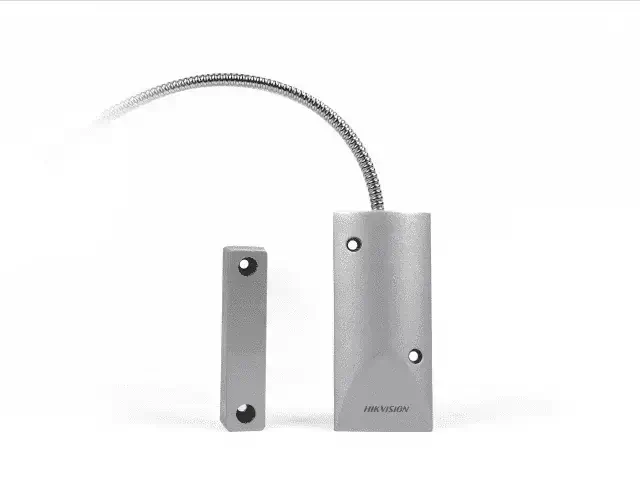

Model: SMK Metal Large Type: Magnetic contact sensor (reed switch) Operating principle: Contacts open when magnetic field disappears

Model: SMK Dumalok Type: Optical smoke detector (photoelectric) Detection principle: Infrared-based smoke particle detection Power supply:

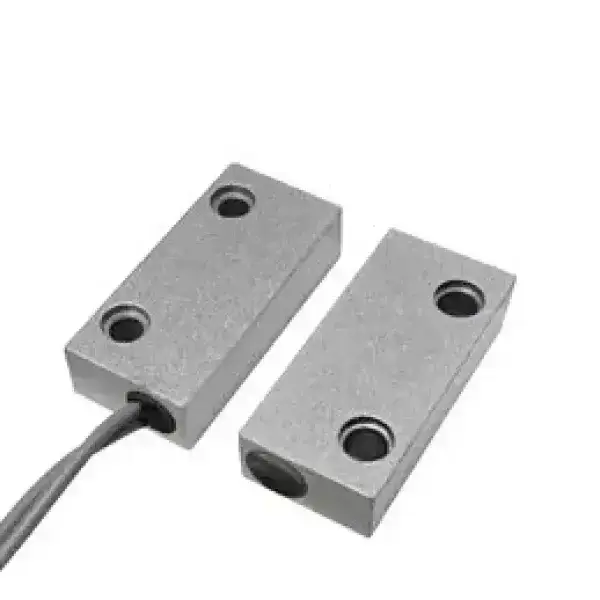

Operating principle: contacts open when magnetic field is lost Connection type: wired (2 terminals) Max voltage: 72 V Max current: 0.5 A

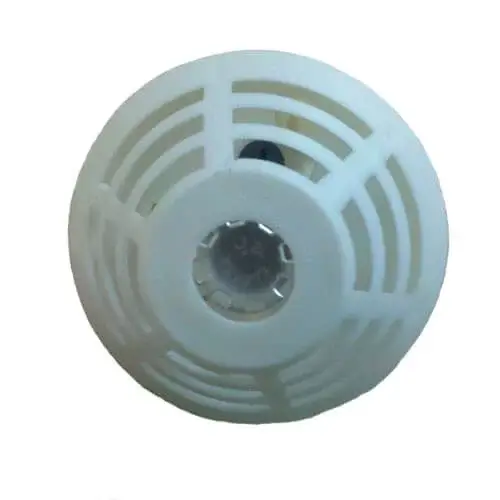

Model: IP-106 Type: Thermal fire detector (reusable) Activation principle: Thermo-relay (activates at 68–72°C) Power: Passive (connected

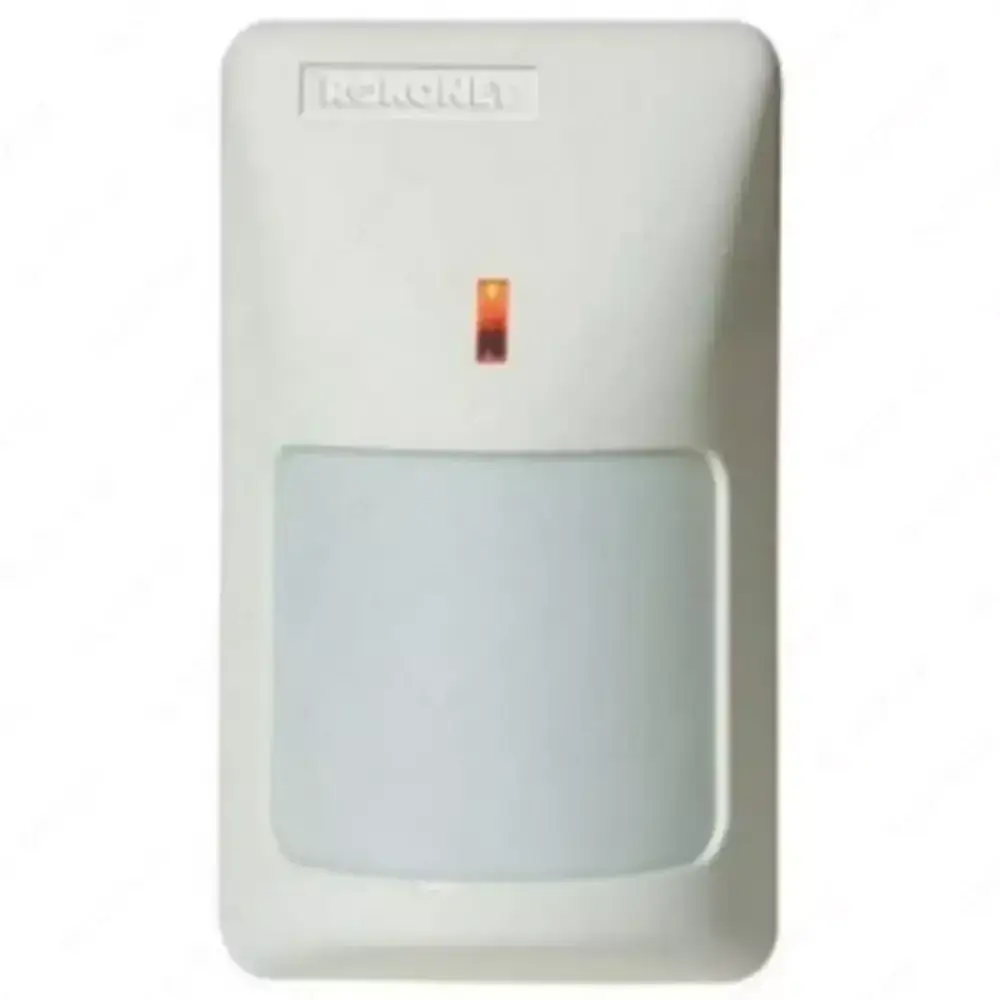

Model: RK-410-PR-Roiscok Type: Passive infrared motion detector (PIR) Detection range: up to 12 meters Viewing angle: 90° Power supply:

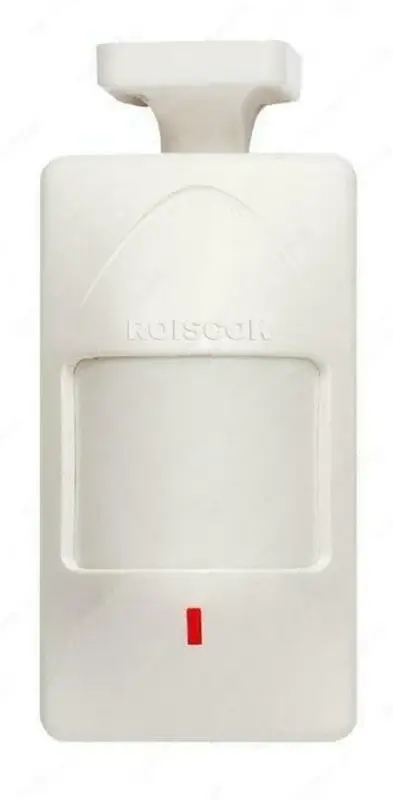

Model: RK-210-PR-Roiscok Type: Passive infrared motion detector (PIR) Detection range: up to 10 meters Viewing angle: 90° Power supply:

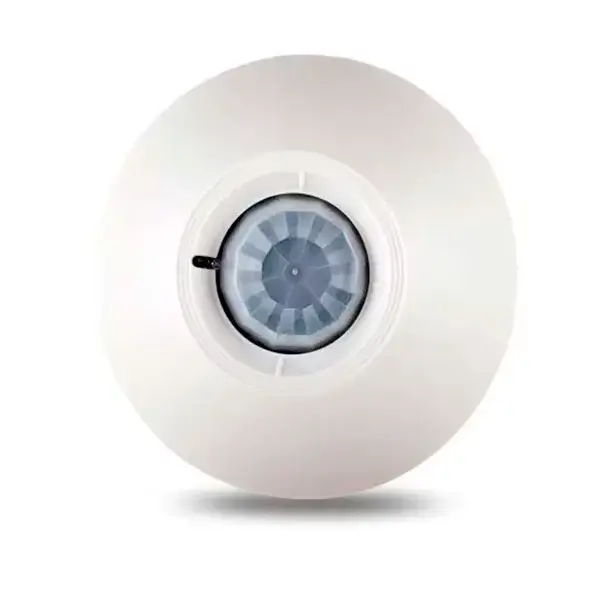

Model: RK-2000-DPC Roiscok Type: Ceiling-mounted passive infrared motion detector Detection angle: 360° Detection range: 12–17 meters

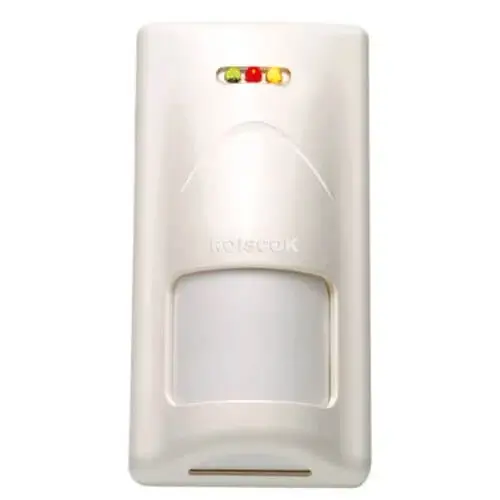

Model: RK-110-DT-Roiscok Type: Dual technology motion detector (PIR + MW) Detection range: up to 12 meters Viewing angle: 110° Power

Model: IDo-503CMW-Roiscok Type: Wireless photoelectric smoke detector Power supply: 3V CR123 lithium battery (1350 mAh) Current

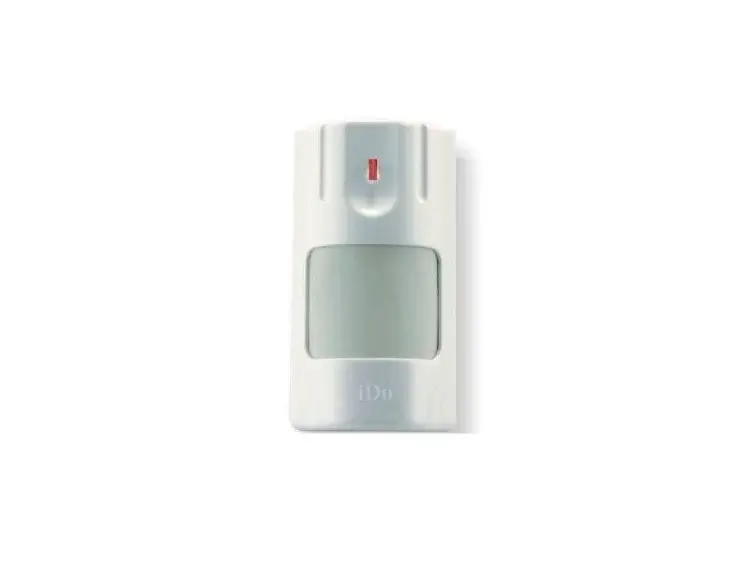

Model: IDo-301W-Roiscok Type: Passive infrared wireless motion detector Detection range: up to 10 meters Viewing angle: 110° Operating

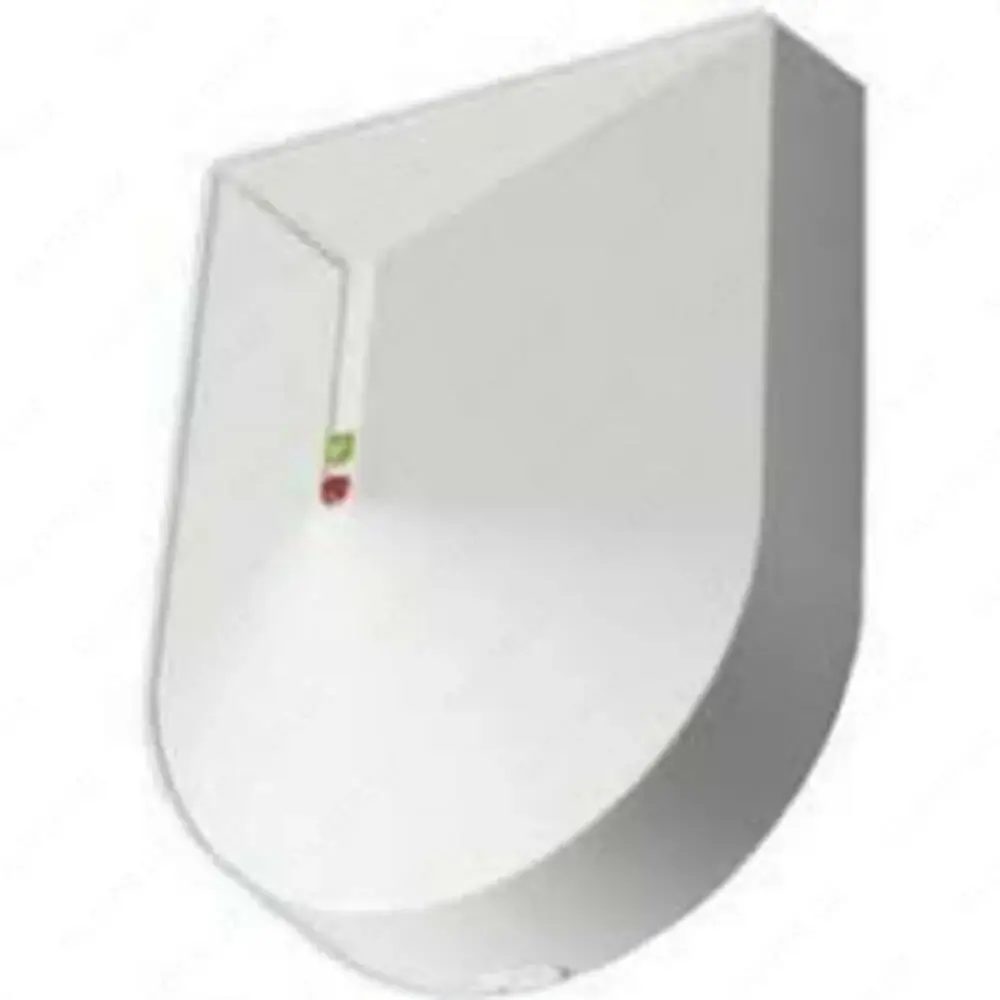

Model: GLASSTREK-456 Type: Acoustic and infra-sound glass break detector Detection range: 4.5 to 9 meters Power supply: 9–16V DC Current

Model: Altai-8 Type: Fire and security alarm control panel Number of zones: 8 loops (8 inputs) Output channel: 1 (FIRE or SECURITY) Signal

Model: Altai-4 Type: Fire and security alarm control panel Number of zones: 4 loops (4 inputs) Output channel: 1 (FIRE or SECURITY) Signal

Model: Altai-32 Type: Fire and security alarm control panel Number of zones: 32 loops (32 inputs) Output channels: 2 (FIRE or SECURITY)

Model: Altai-24 Type: Fire and security alarm control panel Number of zones: 24 loops (24 inputs) Output channels: 2 (FIRE or SECURITY)

Model: Altai-2 Type: Fire and security alarm control panel Number of zones: 2 loops (2 inputs) Output channel: 1 (FIRE or SECURITY) Signal

Model: Altai-16 Type: Fire and security alarm control panel Number of zones: 16 loops (16 inputs) Output channels: 2 (FIRE or SECURITY)

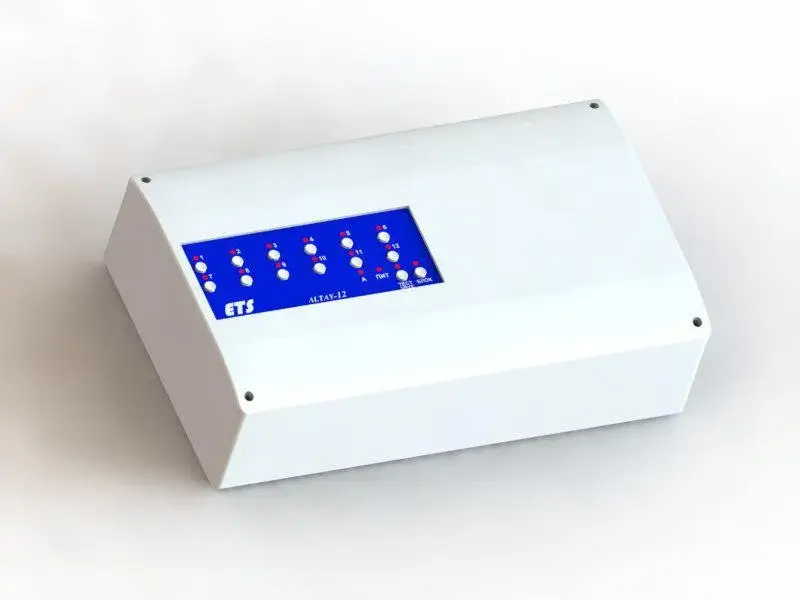

Model: Altai-12 Type: Fire and security alarm control panel Number of zones: 12 loops (12 inputs) Output channels: 2 (FIRE or SECURITY)

Model: Battery for Altai (compact) Voltage: 12V Capacity: 1.3Ah to 7Ah (depending on model) Type: Sealed Lead Acid (SLA) Operation:
